April 9th: MakerGear Prusa Mendel Kit - Build Day #2 - Morning

(This is part 2 of the build - Part 1 is here)

I'm splitting today's progress into pieces, mostly so I can remember things along the way.

This section took from 9:30am to 1:30pm, so 4 hours - with about 45 minutes of trying to get the feet to sit flat and another 45 minutes of rework by forgetting the PTFE sleeve that prevents belt / rod contact  :(

Quote of the morning from my 11 year old - "Dad, we should get a laser cutter..."  I couldn't agree more!

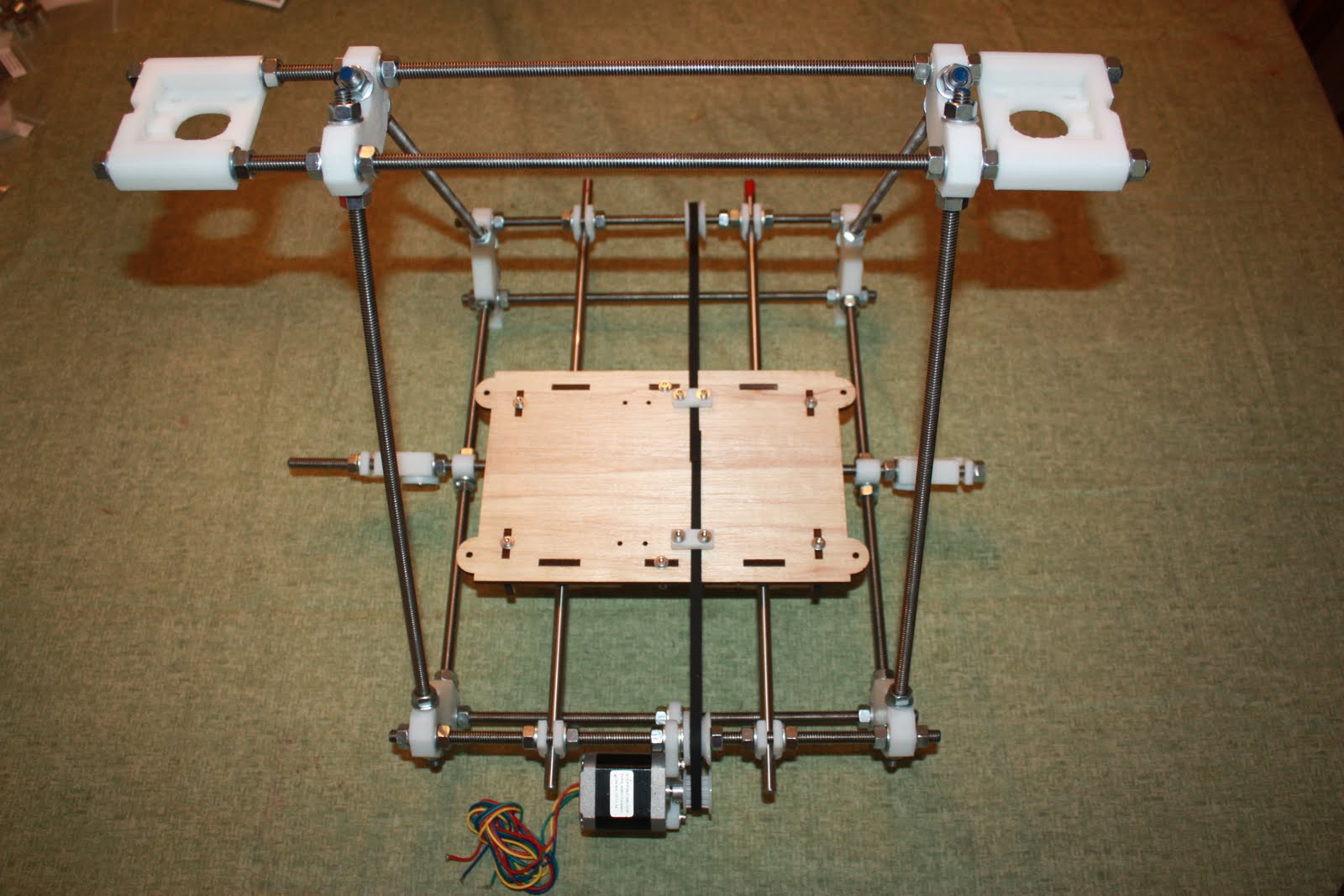

UPDATE: I'm a dork, I used the wrong rods for the Y-Carriage. They are the ones with red on the ends. I've swapped them for the right length, you can see them in the Day 2 afternoon post...

Note: the PTFE sleeve is missing in this photo

Note: the PTFE sleeve is missing in this photo

Note: the PTFE sleeve is missing in this photo

Note: the PTFE sleeve is missing in this photo

Note: the PTFE sleeve is missing in this photo

Add caption

Note: the PTFE sleeve is missing in this photo

Pile of debris from cleaning out all the laser cut wood pieces.

The top shows how far I could get the bushing in by hand...the bottom was after using a socket and a rubber mallet to seat them. Pics below...

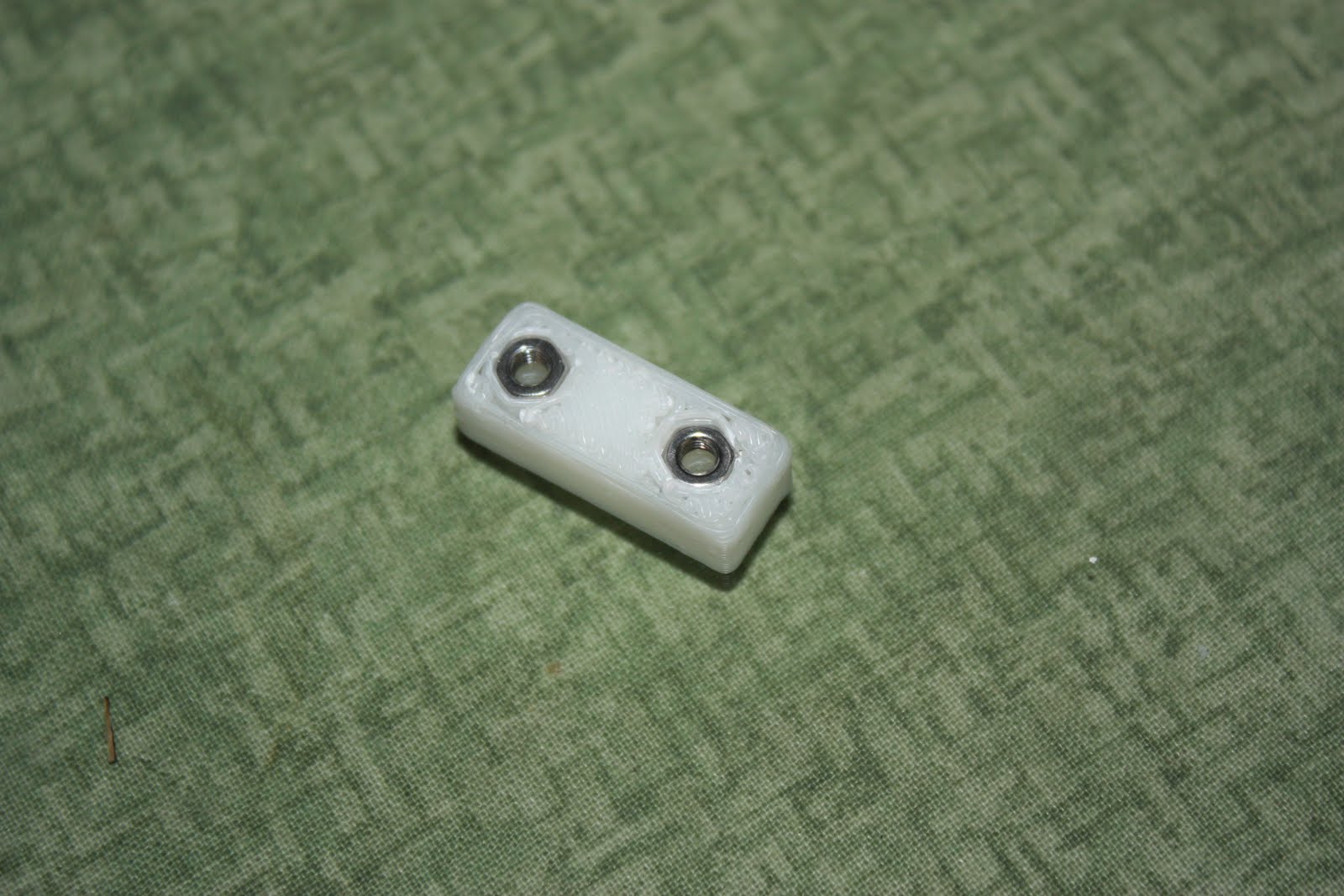

I'll be suggesting to MakerGear that the middle brace be notched if possible to not block the holes for the belt holders - it was tricky to get them on...

My 11 year old bolting together the Y-Carriage

Note: the PTFE sleeve is missing in this photo

Add caption

I'll be suggesting to MakeGear that the middle brace be notched if possible to not block the holes for the belt holders - it was tricky to get them on...

Hey wait, wasn't there supposed to be a PTFE sleeve that...oh no...

20 minutes later...

Hey look - a PTFE sleeve!

Had to recenter the rod since I'd removed it to put on the PTFE sleeve. Figured I'd show the using the plumb bob...

I really should have taken that red paint off the smooth rod...
